Modeling an Architectonic Interior for Render Time Using Maya

The goal of this project is to render 2 camera travels inside a room, in a house of contemporary style. Here you can watch both shots after post-production:

Environment interior 2 shots Environment interior 2 shots
Environment interior 2 shots after post‑production.

Pre‑production

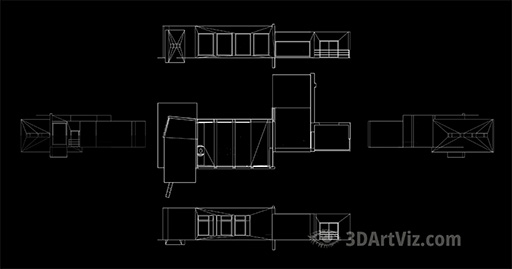

We are counting on a finished pre‑production, including storyboard, animatics, concept art, etc. But most important is having a floor-plan and elevations:

Interior floor plan and elevations Interior floor plan and elevations
Interior elevations and floor-plan.

If you want to see examples of pre‑production and/or specific prepping information for environment projects, please click on the following cards:

Level layout for video game
Level Layout for Video Game

Drawing a Level layout for a video game as part of the pre production process, using CAD floor plans and elevations and blocking out the level in 3D.

Establishing guidelines for real time pipeline
Guidelines for Real Time

Establishing guidelines for a real time 3D production pipeline. Research, One Page Design, developing environment, characters and programming interaction.

Developing 3D production pipeline
Developing 3D Pipeline

Writing a 3d production pipeline for render time, including pre‑production, production and post-production.

Modeling

Once floor-plan and elevations are in position, I'm drawing polygons on the main wall marks and extruding them upwards:

Adding gaps for doors and windows Adding gaps for doors and windows Minimum quads count method Minimum quads count method
Adding gaps for doors and windows and applying the Minimum Quads Count method.

Once the walls and floors have enough detail, I can can start furnishing my interior. I'm modeling every piece from scratch, sometimes using polygons, but also NURBS Surfaces:

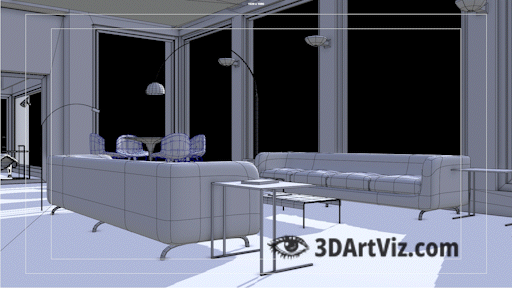

From modeling to composite From modeling to composite
From polygonal meshes and NURBS surfaces to composited render frames.
