Modeling a Mechanic Character Using ZBrush and Maya
The goal of this project is making a short film, featuring mechanic characters in a lights‑out factory. This is a sample from the composited short film:
Mechanic characters in a sample scene from the composited short film.
These are the steps I'm taking to execute this particular modeling task:
Character development is a part of the pre‑production. You can see some schematics here: a ¾ view, orthographic views and a concept artwork:

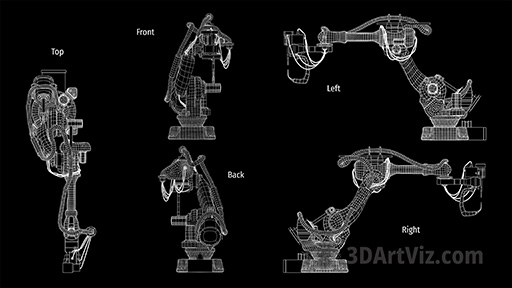

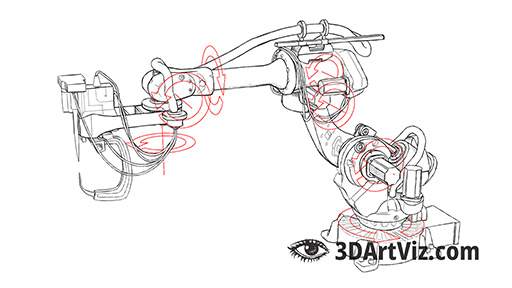

Robot 3/4 view, including rotation axes.Orthographic views.Concept artwork.
For more information about Character Development, click on the Character Pre-Production case study card:
Character Sheet for Video Game
Character sheet example from a video game project, including silhouettes, poses, expressions, clothes and gear, variations, turnaround and 3D block out.
Thanks to my storyboards and elevations, I now know for certain:
This character is going to animate like an arm
The character is going to have a hand-like end with an independent rig
There are going to be a lot of visual effects, and
The most important part at this stage is that my character is not deforming.
Topology
I don't have to care much about topology or edge loops in this character, because it's rigid. I'm modeling it like a sculpture.
Model topology before smooth nodes inside Maya viewport.
Methodology
A simulation is driving the cables' deformation. My rigid model rotations and translations are informing the simulation through collisions and fixed deformation points. They are framing the methodology for this modeling workflow:
Sculpting in ZBrush
ZRemesh for edge loops
Exporting as OBJ into Maya (cleans up the mesh)
Opening UVW
Reimporting into ZBrush, and
Adding detail on each individual piece.
Displacement maps
When the detailing is done, I am in the position to export those reliefs in the form of displacement maps. Here you can see some of them compared to their corresponding UVW:
Three parts of the base model: mesh, displacement map and UVW.Three parts of the elbow model: mesh, displacement map and UVW.
I am modeling wit Maya all the mechanic pieces that do not need any displacement, because they only need a smooth node with one subdivision to convey curvature. Otherwise, I'm adding detail through brushes in ZBrush. Using Displacement maps spares a lot of polygonal detail and manual retopology. Here you can see a stress test on the simulation, showing the detailed surfaces animating in render time:
Robot character testing rigging and simulation.
