Simulating Clothes Using nCloth in Maya

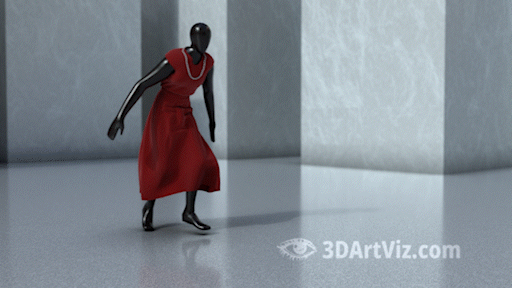

The goal of this exercise is to simulate a dress on a mesh driven by a motion capture. This are some key moments in the composited  scene (camera, model and MoCap provided by MPC):

These are the tasks I'm executing for this simulation:

Dress

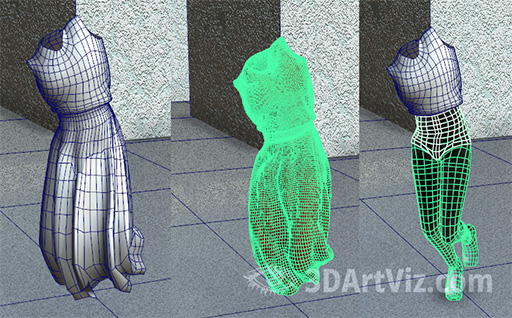

I am using a Low‑Poly version of the dress to run the simulation. Once cached, I'm creating a wrap node to attract the High‑Poly geometry to my cached mesh. Also, I am skinning the upper part of the dress to a lower resolution version of the dancer's body, and using it as a collider to spare resources:

Necklace

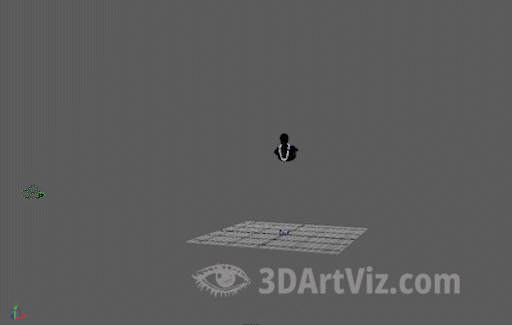

I am simulating the necklace basing its deformation on a nHair curve node, an independent Nucleus, and another simplified version of the dancer's body as collider:

I am letting the motion capture drive the simulations, caching the Nucleus solution, and adding an attractor onto the high‑resolution model, keeping the general deformation.

Simulation driving another simulation

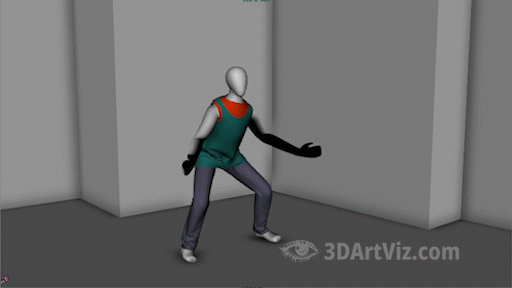

I'm following the same procedure on this other example (again, model, MoCap and camera provided by MPC):

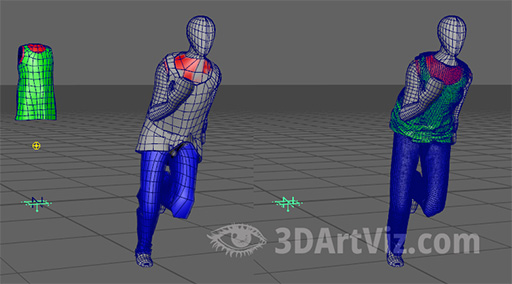

This project has the additional complexity of simulating nCloth over a prior nCloth simulation. I am solving this by skinning the shirt under the vest, using the former as collision, simulating over it, and using low‑res versions of all 3 clothes as attractors:
